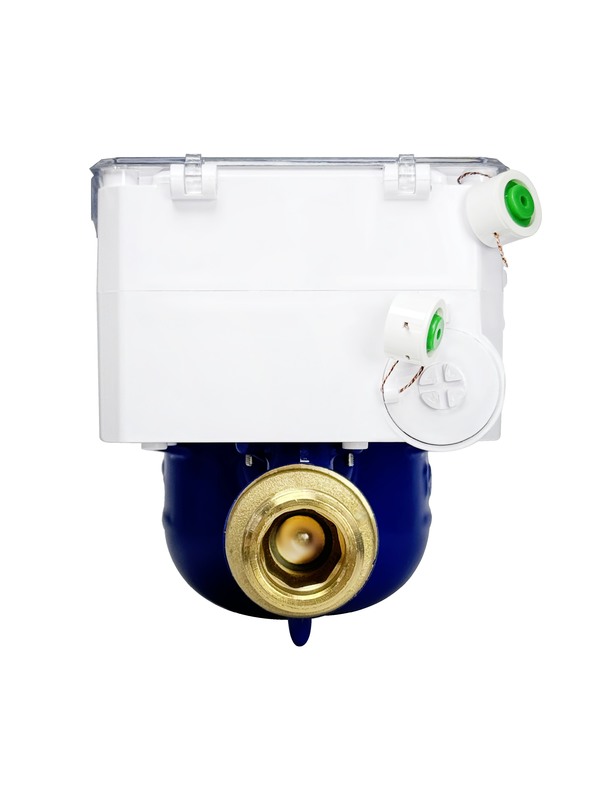

STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life

STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life

Class C Accuracy Prepaid Water Meter

16MPA Water Pressure Smart Water Meter

8 Years Battery Life STS Water Meter

Lugar de origen:

Hunan, China

Nombre de la marca:

Stron

Certificación:

STS Certificate,ISO9001,ISO14001

Contacta con nosotros
Solicitar una cita
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life
Detalles del producto
Clase de protección:
IP68
Caudal:
01
Rango de medición:
0.1-1
Duración de la batería:
8 años
Tipo de visualización:
Lcd
Clase de precisión:
Clase C
Presión de agua:
16MPA
Modo de carga:
Mantenimientos de precios del paso
Protección contra el tinte:
Protección de campo magnético
Presión de trabajo máxima:
16bar
Pérdida máxima de presión:
0.6 bar
Temperatura máxima:
50℃
Rango de error Q1-Q2:
5%
Rango de error Q2-Q4:
2%
Interfaz de comunicación:
LORA RF o Bluetooth 4.0
Resaltar:

Class C Accuracy Prepaid Water Meter

,

16MPA Water Pressure Smart Water Meter

,

8 Years Battery Life STS Water Meter

Condiciones de pago y envío
Cantidad de orden mínima
100
Productos relacionados
Un buen precio. STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication en línea

STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication

Obtenga el mejor precio
Un buen precio. STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty en línea

STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty

Obtenga el mejor precio
Un buen precio. STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software en línea

STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software

Obtenga el mejor precio
Un buen precio. Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication en línea

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Obtenga el mejor precio
Contacta con nosotros
86-0731-22421066
Contacta ahora
Descripción del producto

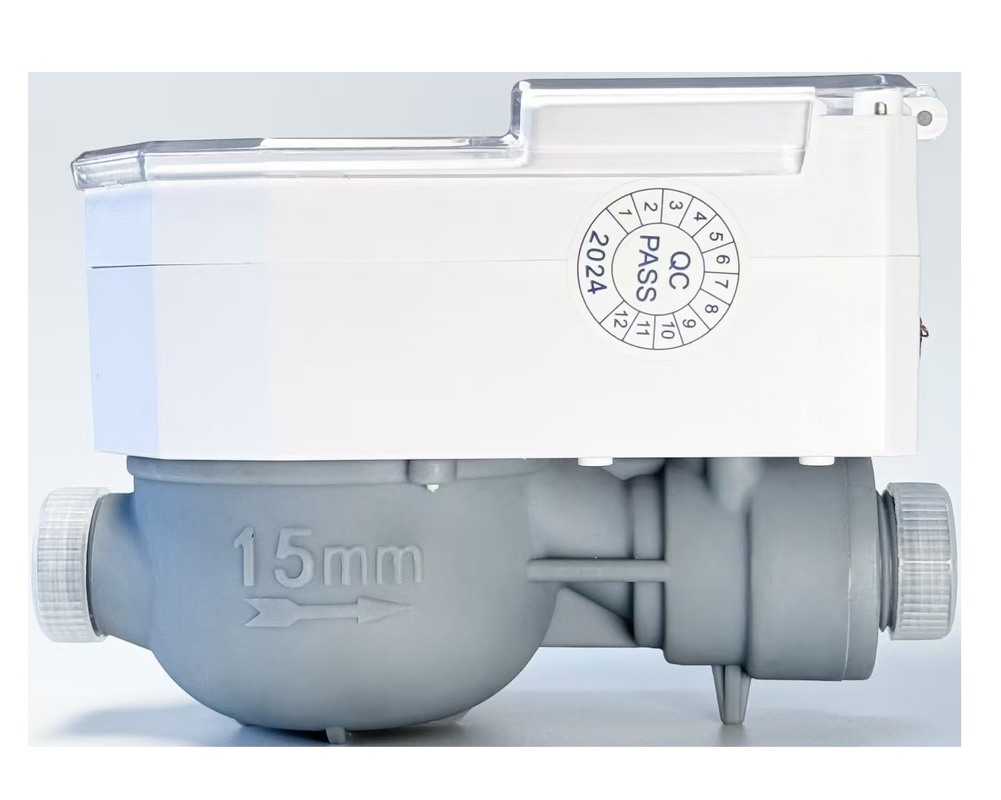

DN15/DN20/DN25 STS Prepaid Smart Wireless RF Lora Split Keypad IP68 Protection Water Meter
The STS standard prepaid water meter features token-based recharge with 20-digit codes. Built with IP68 waterproof protection for harsh environments, its Multi-Jet construction ensures reliable operation even in muddy water without clogging. With low pressure loss (<0.06Mpa) and maintained accuracy beyond 10 years of service.
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 0 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 1 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 2
Available Models

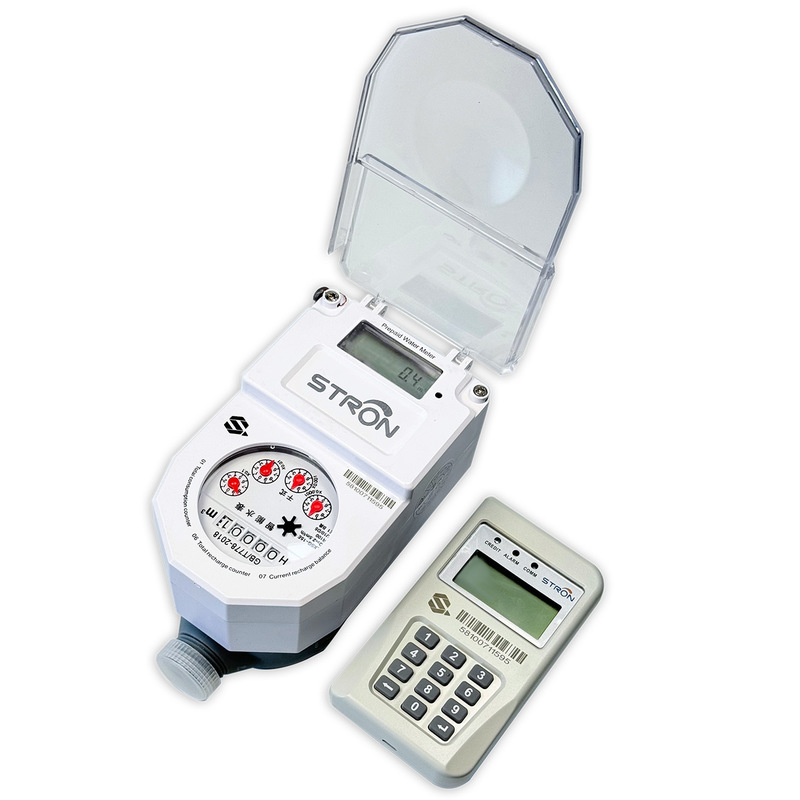

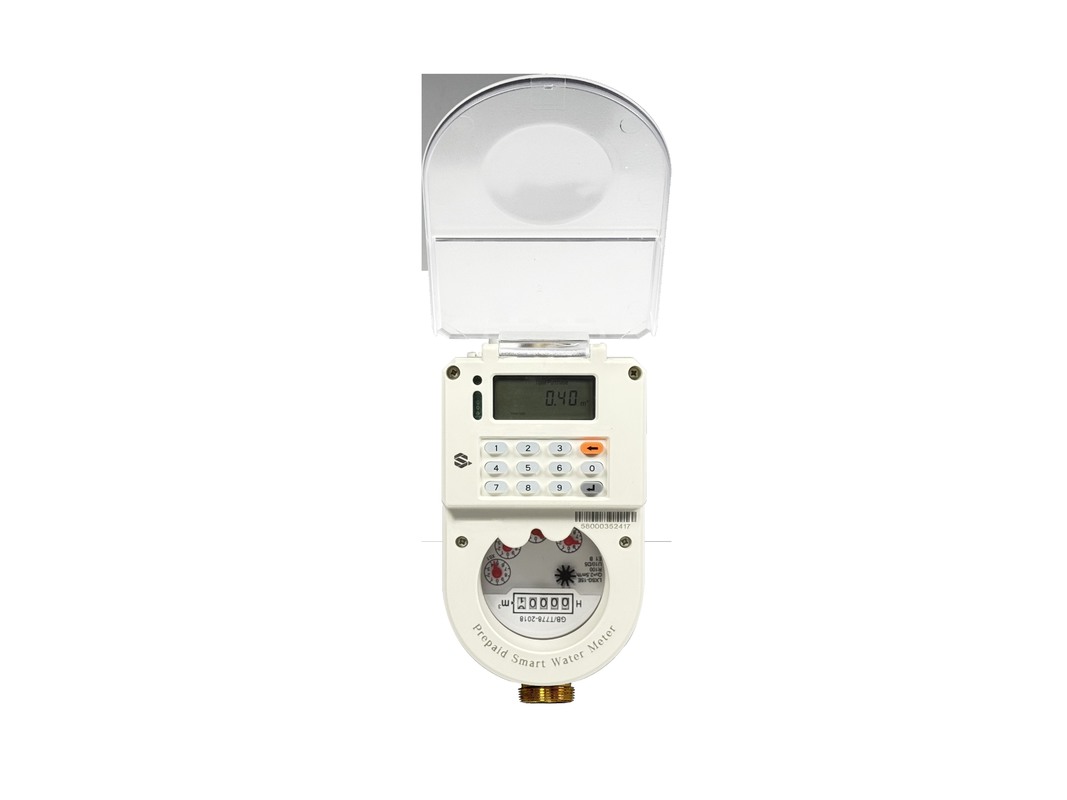

Prepaid Keypad Type Plastic Water Meter
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 3 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 4

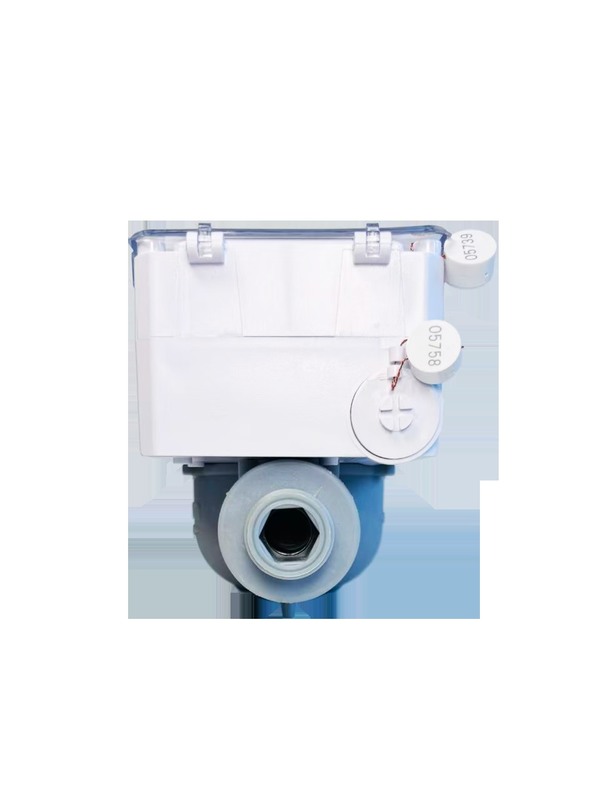

Prepaid Keypad Type Brass Water Meter
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 5 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 6

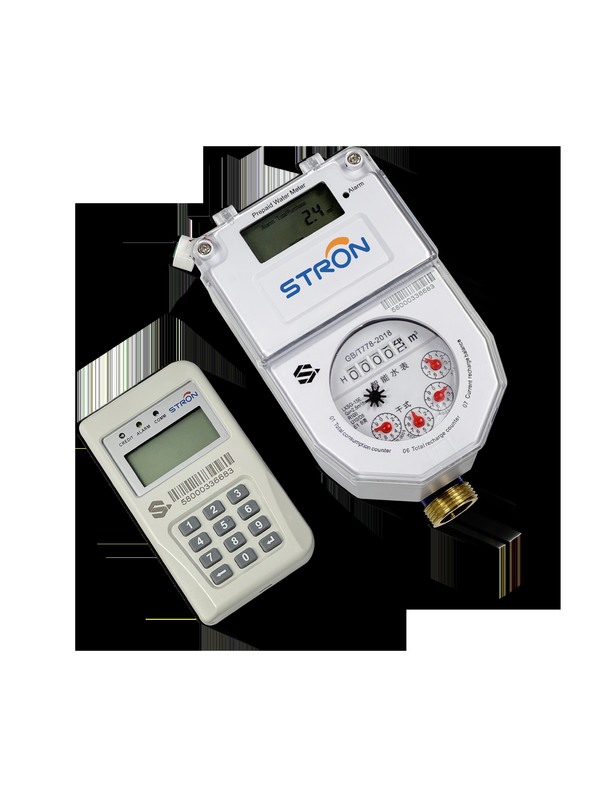

Prepaid Split Keypad Type Brass Water Meter+CIU
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 7 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 8
Technical Specifications
Function Details
Prepayment STS Standard, recharge by input 20-digit TOKEN
Low credit alarm Alarm value can be set via TOKEN input
Prepaid/post-paid switch Convertible between prepaid and post-paid modes
Non-return valve Integrated back-flow prevention
Anti-tamper Automatic valve closure upon magnetic field or cover opening detection
Step Tariff Configurable via TOKEN input
Overdraft Collection Non-revenue water collection (daily/monthly)
Communication Compatible with AMI systems via LORA RF or Bluetooth 4.0 (optional)
Information Inquiry Users can check credit, purchase history via short codes
Metrological Parameters
Size Specifications
DN15mm (1/2") DN20mm (3/4") DN25mm (1")
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 9 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 10
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Option 1: Local Sales Point
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 11
Option 2: Third-party Integration
API integration enables mobile payment and billing system connectivity
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 12
Manufacturer Profile
Hunan Stron Smart Co., Ltd
Founded in 2007, Stron is a leading Chinese smart meter manufacturer with 500 employees including 100 technical engineers. The company serves clients in over 60 countries worldwide.
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 13 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 14
Certifications
STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 15 STS Standard Prepaid Water Meter with Class C Accuracy 16MPA Water Pressure and 8 Years Battery Life 16
