2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure

2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure

Wireless Communication Prepaid Water Meter

RF Lora Smart Water Meter

16MPA Water Pressure STS Water Meter

Lugar de origen:

Hunan, China

Nombre de la marca:

Stron

Certificación:

STS Certificate,ISO9001,ISO14001

Número de modelo:

STW36

Contacta con nosotros
Solicitar una cita
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure
Detalles del producto
Clase de protección:
IP68
Duración de la batería:
8 años
Tipo de pantalla:
LCD
Clase de precisión:
Clase C
Presión de agua:
16MPA
Modo de carga:
Mantenimientos de precios del paso
Protección contra el tinte:
Protección de campo magnético
Protocolo de comunicación:
LORA RF o Bluetooth 4.0
Presión de trabajo máxima:
16bar
Pérdida máxima de presión:
0.6 bar
temperatura máxima:
50℃
Rango de error Q1-Q2:
5%
Rango de error Q2-Q4:
2%
Válvula de no retorno:
Incluido
Baja pérdida de presión:
<0,06 MPa
Resaltar:

Wireless Communication Prepaid Water Meter

,

RF Lora Smart Water Meter

,

16MPA Water Pressure STS Water Meter

Condiciones de pago y envío
Cantidad de orden mínima
100
Precio
$43-45
Productos relacionados
Un buen precio. Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life en línea

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Obtenga el mejor precio
Un buen precio. DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size en línea

DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size

Obtenga el mejor precio
Un buen precio. DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication en línea

DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication

Obtenga el mejor precio
Un buen precio. Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter en línea

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Obtenga el mejor precio
Contacta con nosotros
86-0731-22421066
Contacta ahora
Descripción del producto

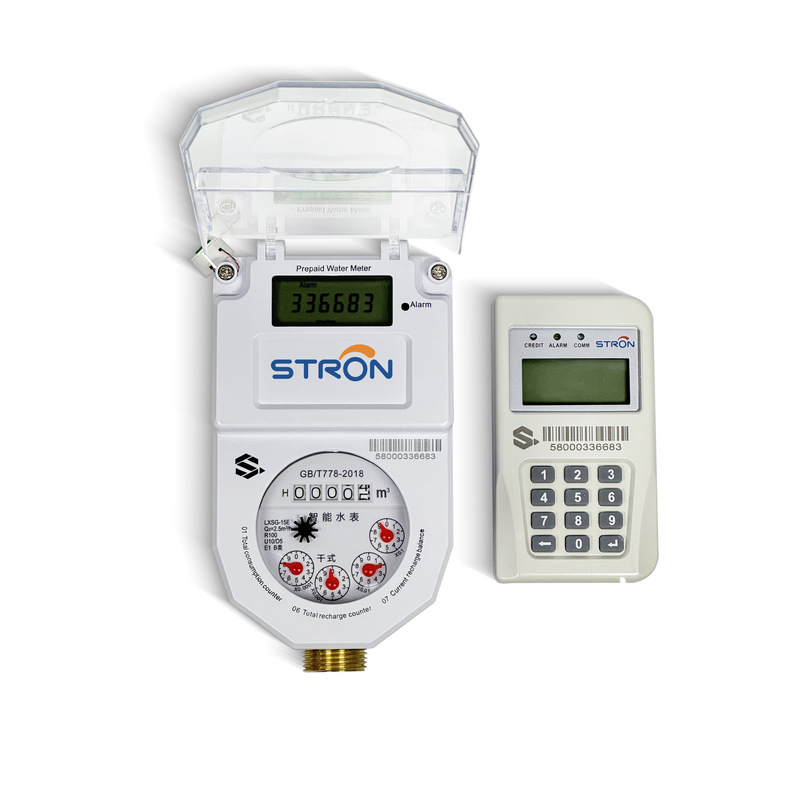

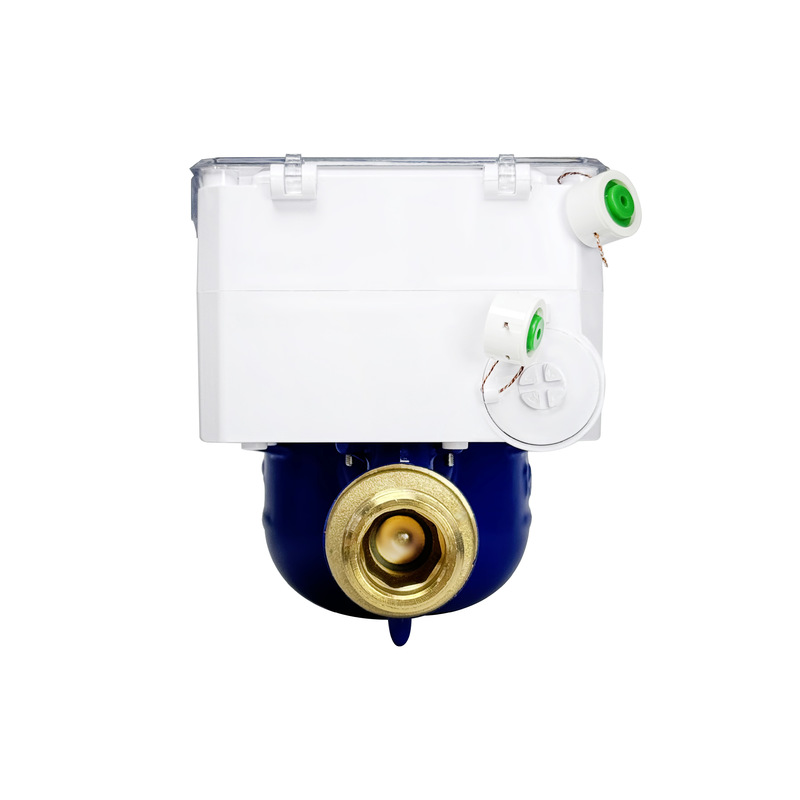

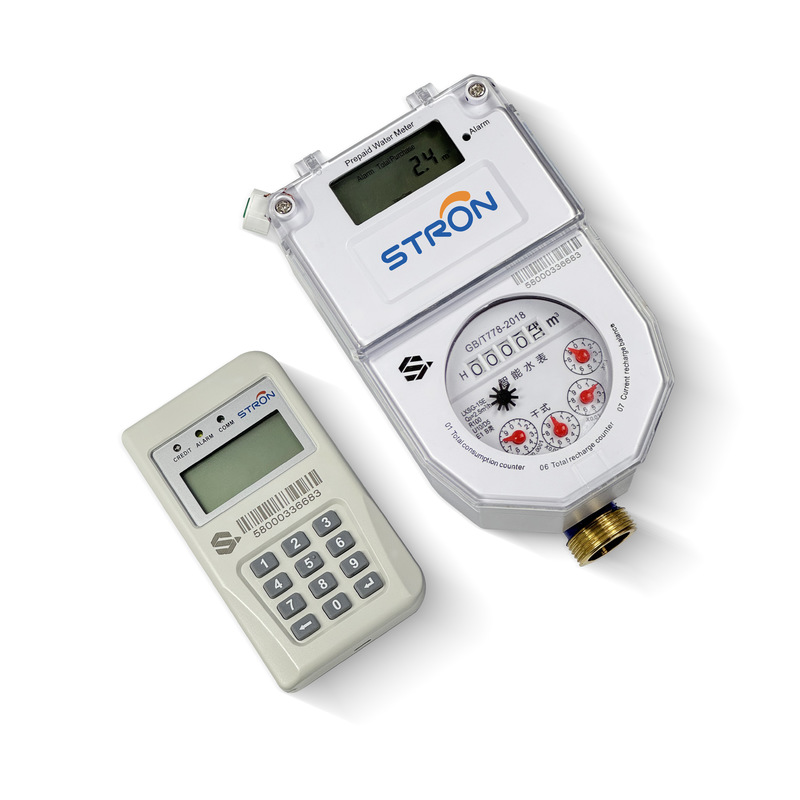

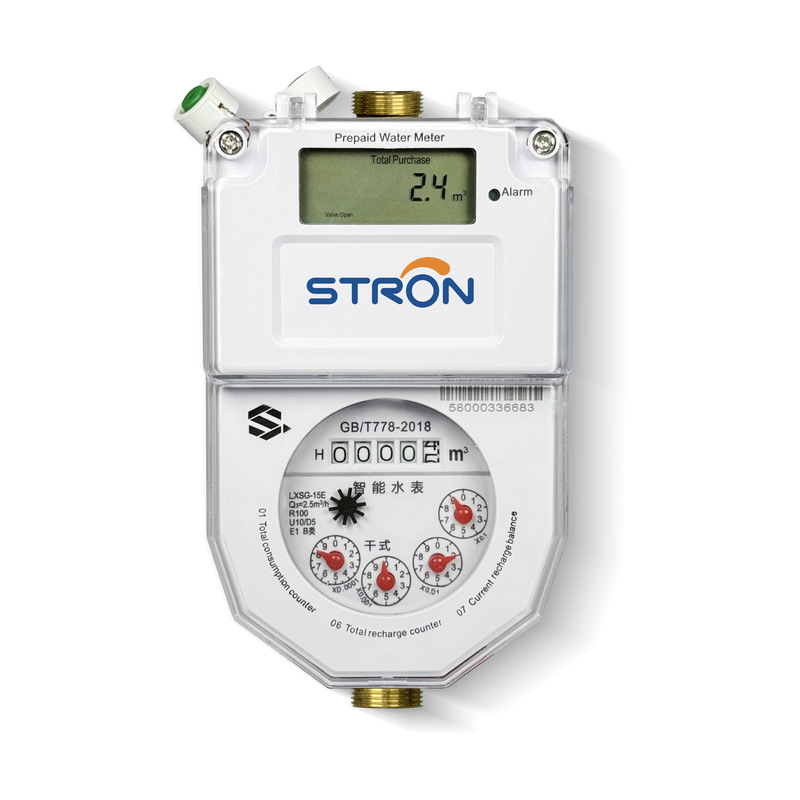

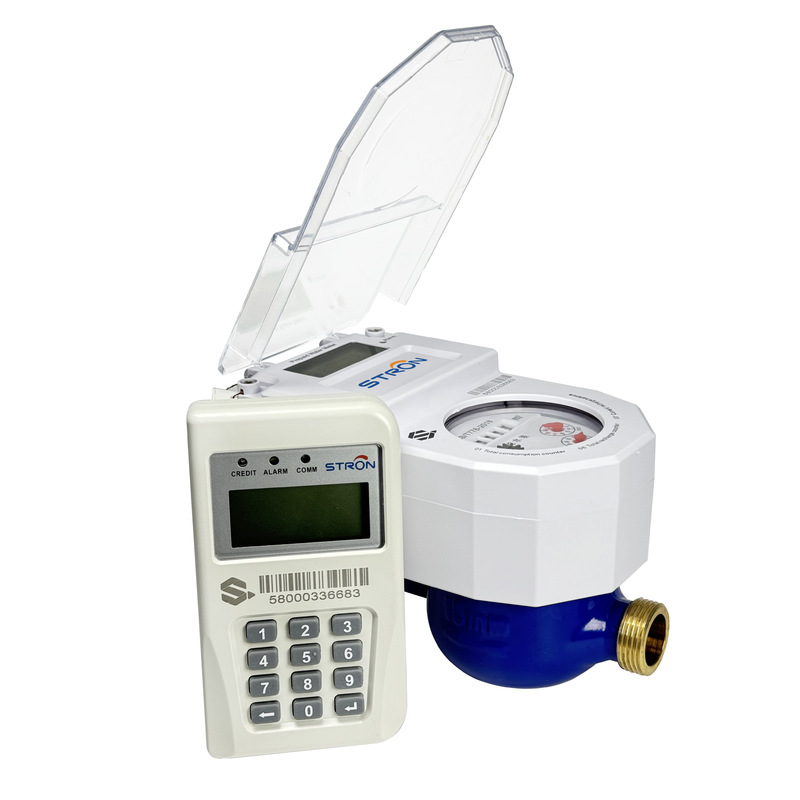

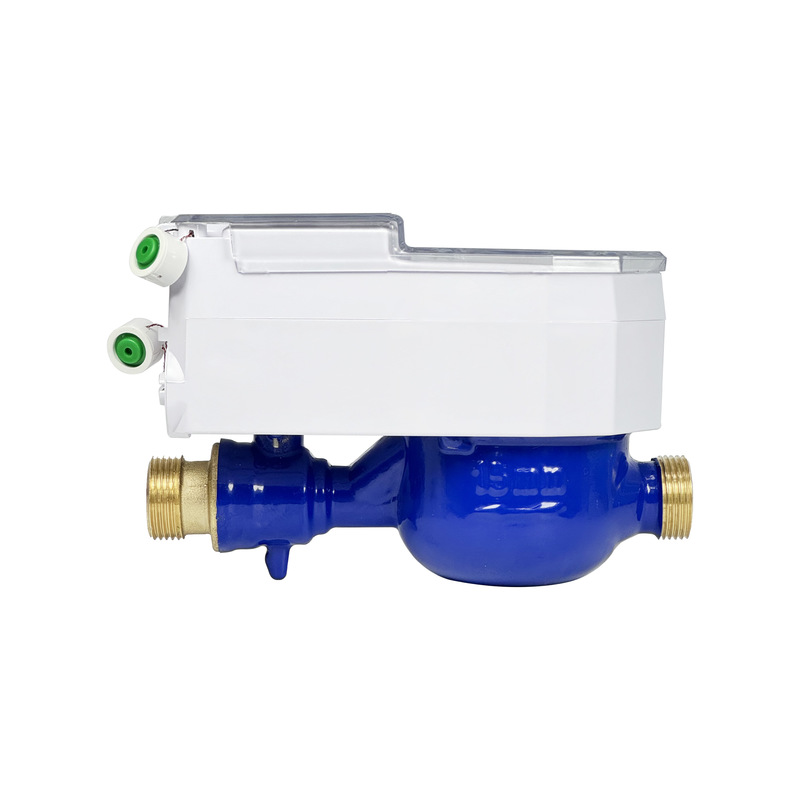

2025 New DN15/DN20/DN25 Wireless Communication RF Lora Smart Split STS Prepaid Water Meter
The STS standard prepaid water meter features token-based recharge with 20-digit codes. Built with IP68 waterproof rating for harsh environments, its Multi-Jet construction ensures reliable operation even in muddy water without clogging. With low pressure loss (<0.06Mpa) and sustained accuracy beyond 10 years, this meter is available in multiple configurations to meet diverse requirements.
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 0 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 1 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 2
Prepaid Keypad Type Plastic Water Meter
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 3 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 4 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 5
Prepaid Keypad Type Brass Water Meter
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 6 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 7 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 8
Prepaid Split Keypad Type Brass Water Meter+CIU
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 9 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 10 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 11
Technical Specifications
Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non-Revenue gas (Overdraft) can be collected day by day or month by month
Communication Available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check data like Credit Remain, Total Purchased and Total Credit by input the short code
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 12 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 13
Operation Steps
Login vending system
Meter number registration
Customer information registration
Price Setting
Open Account
Vending/Topping up meters
Get the Token
Input Token to meter with keypad
Recharging successfully
Vending Options
Option 1: Vending at local sales point
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 14
Option 2: Vending with third party APP/mobile payment/billing system via API
API (Application Program Interface) connects third party apps with our Stronpay vending software.
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 15
Company Profile
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 16
Hunan Stron Smart Co., Ltd, founded in 2007, is a leading Chinese supplier of smart meters with 500 employees including 100 technical engineers. We specialize in intelligent product solutions and maintain partnerships with clients in over 60 countries including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, and Cameroon.
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 17 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 18 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 19
Certifications
2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 20 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 21 2025 New Wireless Communication RF Lora Smart Split STS Prepaid Water Meter with 16MPA Water Pressure 22
