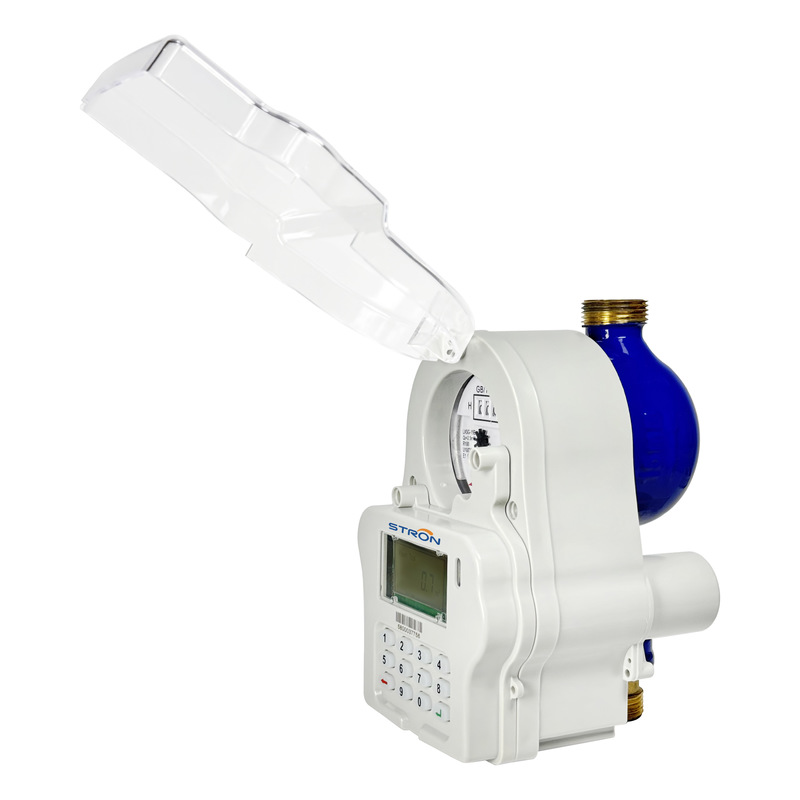

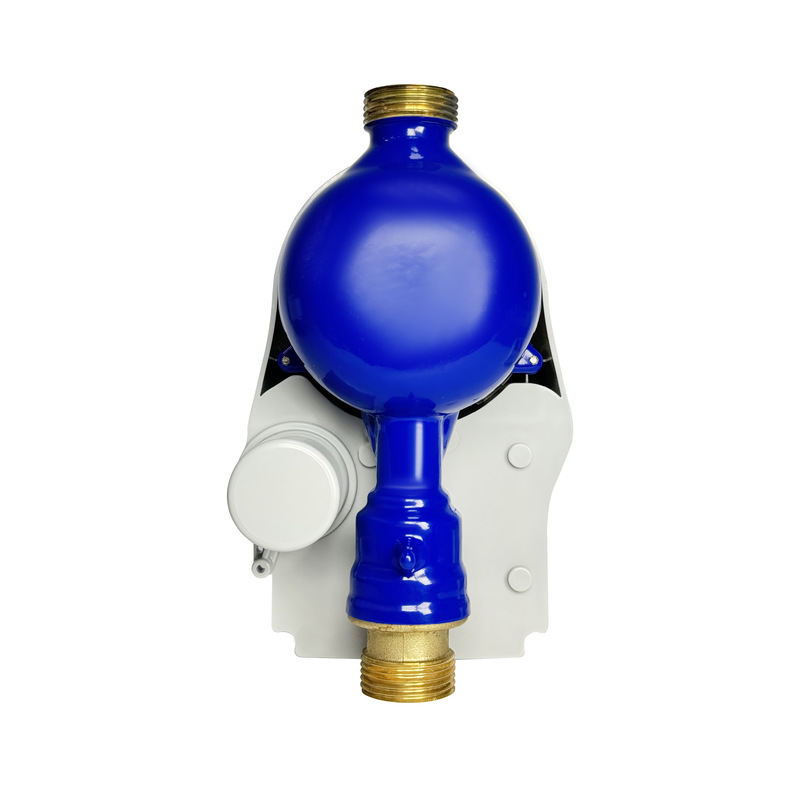

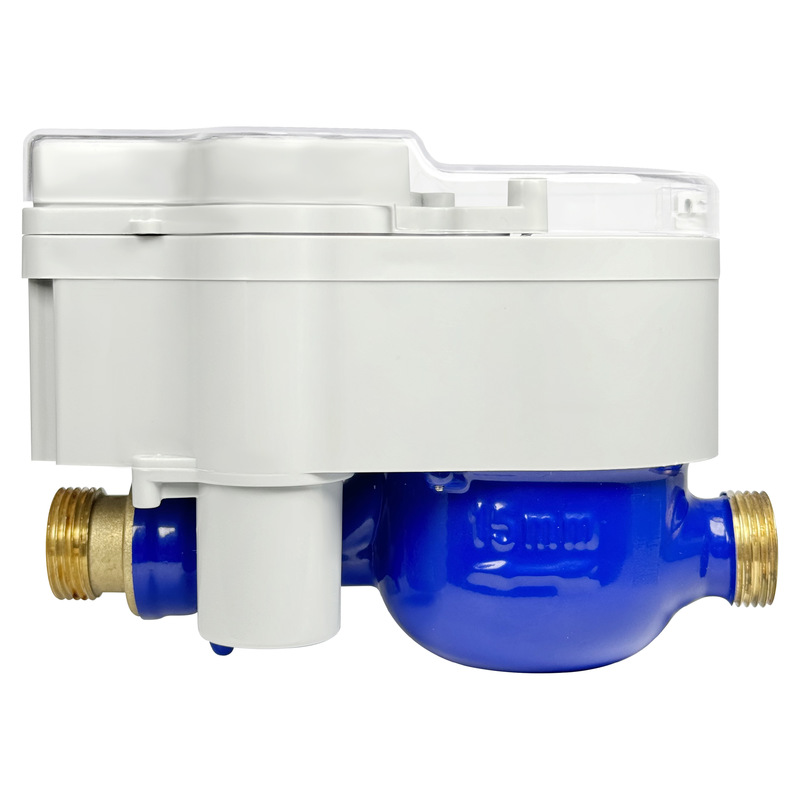

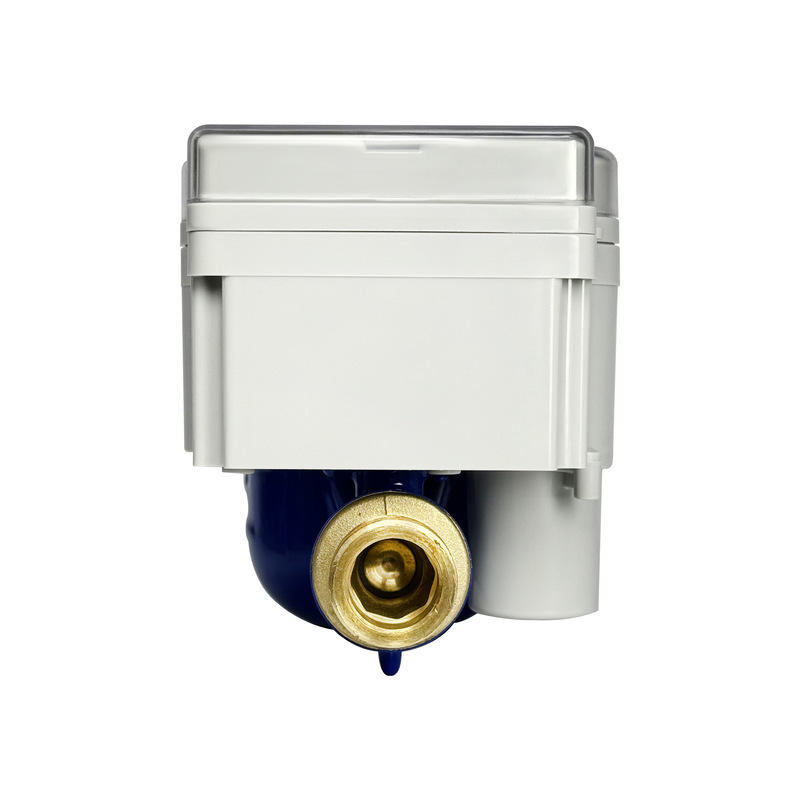

2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports

2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports

Wireless Communication RF Lora Prepaid Water Meter

LCD Display Smart Water Meter

Step Price Supports STS Water Meter

Lugar de origen:

Hunan, China

Nombre de la marca:

Stron

Certificación:

STS Certificate,ISO9001,ISO14001

Número de modelo:

STW36

Contacta con nosotros
Solicitar una cita
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports
Detalles del producto
Clase de protección:
IP68
Duración de la batería:
8 años
Tipo de pantalla:
LCD
Clase de precisión:
Clase C
Presión de agua:
16MPA
Pérdida de presión:
<0,06 MPa
temperatura máxima:
50℃
Protocolo de comunicación:
LORA RF o Bluetooth 4.0
Tasa de flujo de sobrecarga:
3,13 (DN15), 5 (DN20), 7,875 (DN25)
Caudal permanente:
2,5 (DN15), 4 (DN20), 6,3 (DN25)
Tasa de flujo de transición:
0,04 (DN15), 0,064 (DN20), 0,1 (DN25)
Caudal mínimo:
0,025 (DN15), 0,04 (DN20), 0,063 (DN25)
Relación de flujo:
100
Presión de trabajo máxima:
16bar
Pérdida máxima de presión:
0.6 bar
Resaltar:

Wireless Communication RF Lora Prepaid Water Meter

,

LCD Display Smart Water Meter

,

Step Price Supports STS Water Meter

Condiciones de pago y envío
Cantidad de orden mínima
100
Precio
$43-45
Productos relacionados
Un buen precio. Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life en línea

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Obtenga el mejor precio
Un buen precio. DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size en línea

DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size

Obtenga el mejor precio
Un buen precio. DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication en línea

DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication

Obtenga el mejor precio
Un buen precio. Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter en línea

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Obtenga el mejor precio
Contacta con nosotros
86-0731-22421066
Contacta ahora
Descripción del producto
2025 New Type High-capacity Battery DN15/DN20/DN25 Wireless Communication RF Lora Smart Split STS Prepaid Water Meter
The water meter is STS standard, Token type prepaid meter with high quality IP68 waterproof rating, designed to operate in harsh environments. Its Multi-Jet construction ensures reliable operation even in muddy water without clogging. Features low pressure loss (<0.06Mpa) and maintains accuracy beyond 10 years of service. Available in multiple types to suit different requirements.
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 0
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 1
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 2
Prepaid Keypad Type Plastic Water Meter
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 3
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 4
Prepaid Keypad Type Brass Water Meter
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 5
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 6
Prepaid Split Keypad Type Brass Water Meter+CIU
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 7
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 8
Specifications
Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non-Revenue gas (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 9
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 10
Operation Steps
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Option 1: Vending at local sales point
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 11
Option 2: Vending with the third party APP/mobile payment/billing system with API
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 12
Company Profile
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 13
Hunan Stron Smart Co., Ltd was founded in 2007 and is a leading supplier of smart meters in China. With 500 employees including 100 technical engineers, we are committed to being a premier intelligent product service provider.
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 14
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 15
Stron has maintained long-term cooperation with partners from over 60 countries and regions including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, Cameroon, etc.
Certificates
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 16
2025 New Type STS Standard Prepaid Water Meter with Wireless Communication RF Lora LCD Display and Step Price Supports 17
